Subsea Survey Technology

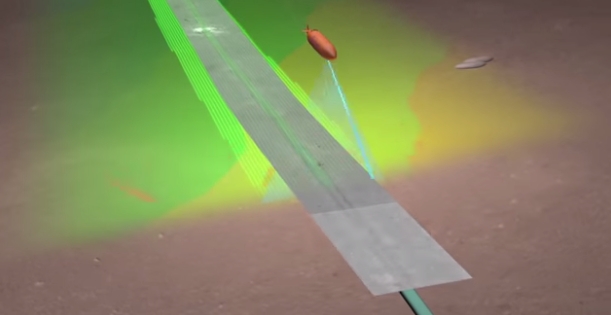

Multi-sensor AUV Pass

Sensor Technology: A full range of survey sensors can be used with the AUV/ASV platforms. Depending on project requirements, some sensors can be operatied concurrently minimising the required passes and required time on site.

  • Side Scan Sonar

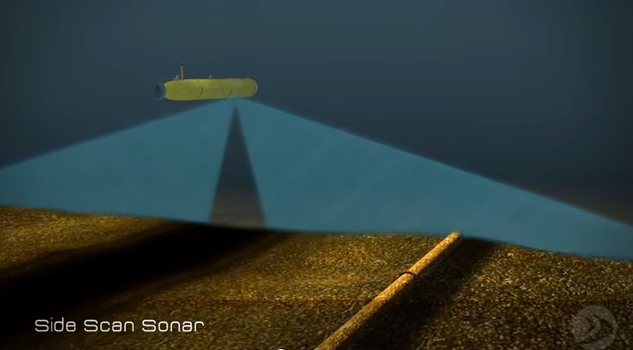

Side Scan Sonar on Bluefin 21

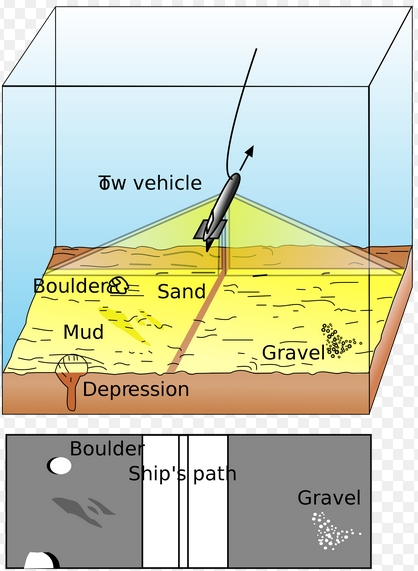

Side Scan Sonar Drawing
  • Multibeam Bathymetry Sonar

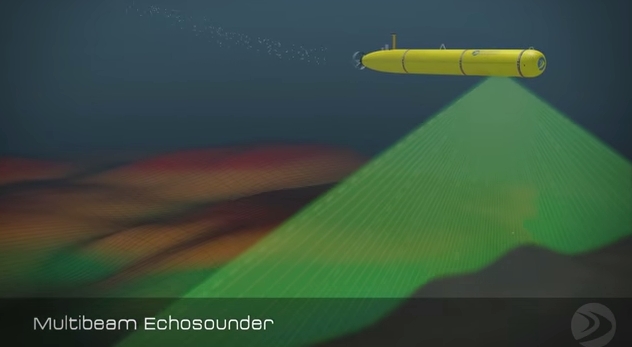

Multibeam Echosounder from Bluefin 21

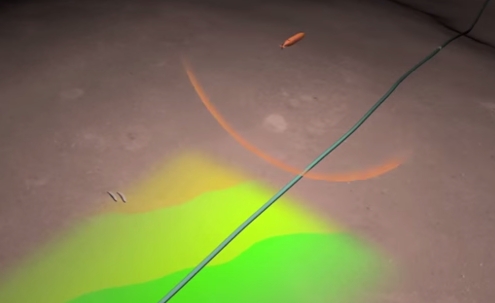

multi-beam sonar from AUV
Multi-beam sonar
  • Sub-Bottom Profiling

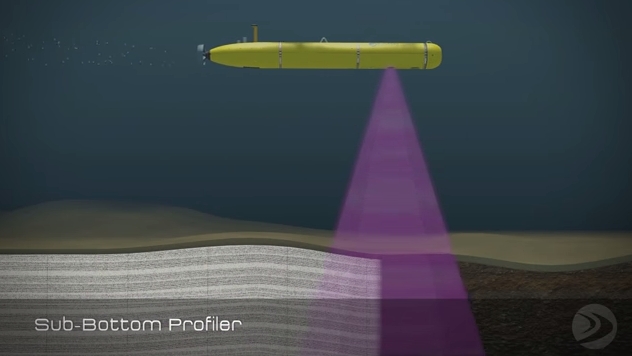

Sub Bottom Profiler from Bluefin 21

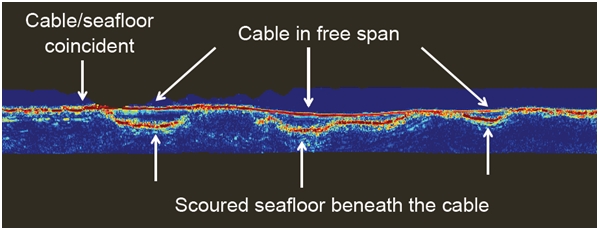

Ref: Pangeo - SBI Data showing cable in free span due to seafloor scouring
Ref: Pangeo – SBI Data showing cable in free span due to seafloor scouring
  • Magnetometer

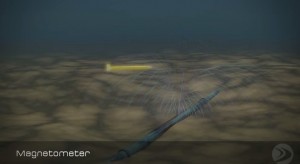

Magnetometer towed from Bluefin 21 AUV

  • Mosaic Photography or Photographic Scanning
Photography from AUV

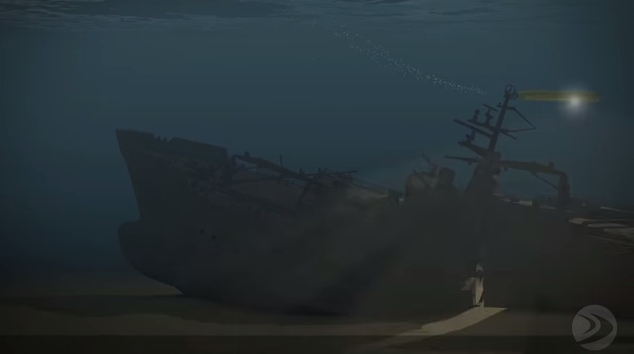

Mosaic Photography from Bluefin 21

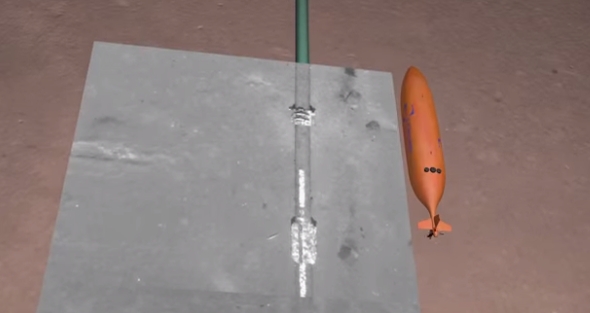

AUV Photographic scanning
Photographic Scanning from an AUV
  • 3-D Laser Bathymetry

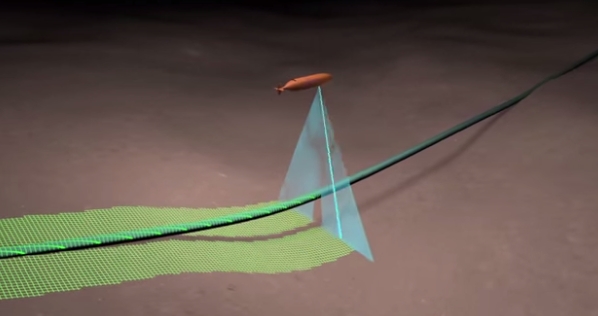

AUV Laser scan
Laser Scanning from an AUV
